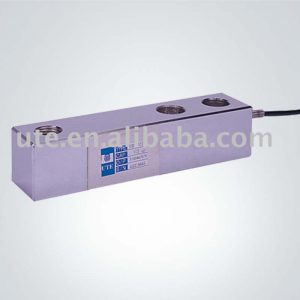

Load cell UES-F

UTE load cells are designed to meet the most stringent accuracy requirements.
?UES? load cells are available in the capacities 0.25 t? to 10 t.
They offer total alloy steel construction and improved potting,making them

BUY
Categories: , Tag:

Description

?UTE load cells are designed to meet the most stringent accuracy requirements.
?UES? load cells are available in the capacities 0.25 t? to 10 t.
They offer total alloy steel construction and improved potting,making them
suitable for use in the toughest industrial environments.
It allows very low profile platform design and offers advantages in all? kind
of? weighing? applications.


Important Features:

1. Capacities:0.25t,0.5t,1t,2t,2.5t,5t,10t
2. High accuracy
3. Total alloy steel construction
4. Low profile
5. Easy cable replacement
6. Complete range of loading hardware available
7. Factory mutual approvedApplication areas:
??? 1. Plat form scale

?? ?2. Silo and tank weighing

UES Specifications

Maximum Capacity

t 0.25/0.5/1/2.5/5/10
Material
?

Alloy steel

Recommended Excitation
V

10

Maximum Excitation

V

15

Rated Output(=RO)

mV/V 3 ± 0.0025

Zero Balance

%RO

± 0.030

Creep Error (20minutes)

%RO

± 0.03

Repeatability

%RO

± 0.02

Input Resistance

Ω

390 ± 3

Output Resistance

Ω

350 ± 3

Compensated Temperature Range

-10 ~ 40

Operating Temperature Range

-20 ~ 60

Temperature Effect On Output
%Load/10 0.02
Temperature Effect On Zero
%RO/10

0.02

Safe Load limit

%of rat.cap.

150

Ultimate load

%of rat.cap.

200

Sealing
? Complete hermetic sealing;cable entry sealed by metal header
Protection class
? IP 66
