Description

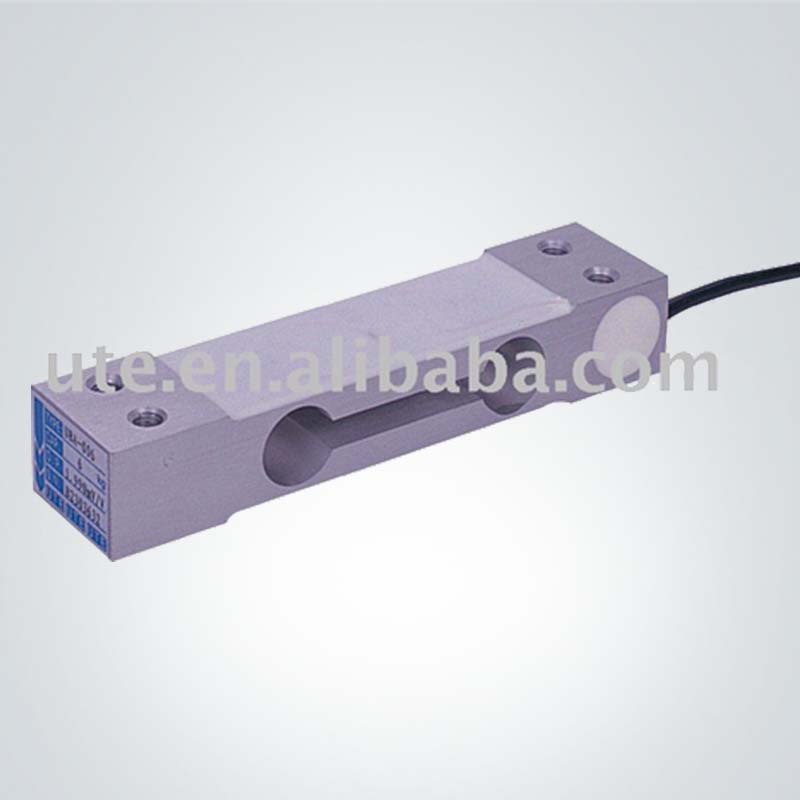

load cells are available in the capacities 3 Kg to?35 Kg.
They offer total alloy aluminum construction and improved potting,making them suitable
for use in the toughest industrial environments.
It allows very low profile platform design and offers advantages in all? kind of? weighing
applications.
mportant Features:
??????????? 1. High accuracy
??????????? 2. Total alloy steel construction
??????????? 3. Low profile
??????????? 4. Easy cable replacement
??????????? 5. Complete range of loading hardware available
????????????6. Factory mutual approved
Application areas:
??????????? 1. Price scales
??????????? 2. Counting scales
??????????? 3. Weighing scales
Maximum Capacity |
Kg |
UBA 3/6/12/20/35 |
Material |
|
AlUMINUM |
Recommended Excitation |
V |
10 |
Maximum Excitation |
V |
15 |
Rated Output(=RO) |
mV/V |
2 ± 0.05 |
Zero Balance |
%RO |
± 0.030 |
Creep Error (20minutes) |
%RO |
± 0.025 |
Repeatability |
%RO |
± 0.02 |
Input Resistance |
Ω |
394 ± 3 |
Output Resistance |
Ω |
350 ± 3 |
Compensated Temperature Range |
-10 ~ 40 |
|
Operating Temperature Range |
-20 ~ 60 |
|
Temperature Effect On Output |
%Load/10 |
0.02 |
Temperature Effect On Zero |
%RO/10 |
0.02 |
Safe Load limit |
%of rat.cap. |
150 |
Ultimate load |
%of rat.cap. |
200 |
Sealing |
|
Potted |
Protection class |
|
IP 66 |
Maximum Platform Size |
mm |
380 X 380 |
